Horizontal DC motor 300w







Quick Details

  • Usage: Boat, Car, Electric Bicycle
  • Certification: CE, UL
  • Type: DC motor
  • Torque: 1.69Nm
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Totally Enclosed
  • Speed(RPM): 1700rpm
  • Continuous Current(A): 1.82A
  • Output Power: 300W
  • Voltage(V): 220V
  • DC motor: with fan cooler and foot
  • g.w: 8kg
  • carton size: 34*19*20.5cm

Specifications

DC motor
1)UL,CE
2)220v,300w,1700rpm,Dia:113mm
3)Widely used.
4)High efficiency, easy adjust speed,low pric

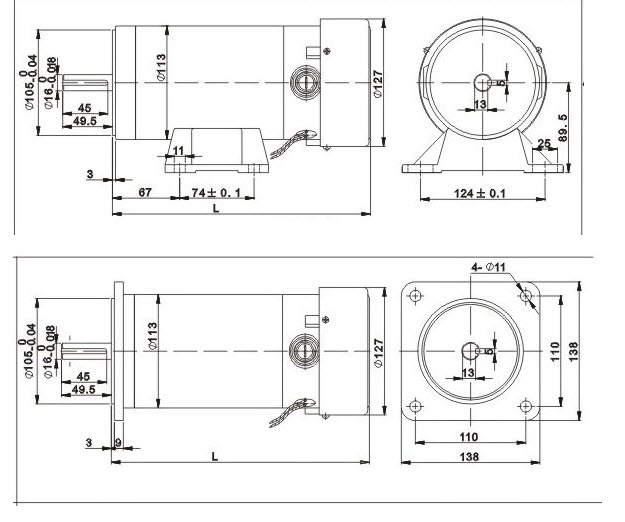

◊ Drawing

◊ Specification

◊ Model Description

113

ZSV

220

-

150

-

1900

1.

2.

3.



4.



5.


1.Body OD:113-fuselage outside diameter of 113mm

2.ZSV:ferrite permanent magnet DC motor

3.Voltage:220-220.DC input

4.Power:150-rated output power of 150HP

5.Speed:1900-Rated speed 1900rpm
